Storm Door and Porch Enclosures

ALUMINUM STORM DOORS CLASSIC

2” Ribbed Classic Frame

Built with old fashioned craftsmanship to last and look great. Its classic design with stucco embossed kick panel or all glass can dress up any entry door. The 2” thick door comes pre-hung with a standard DX handle, or upgrade to an Elite Lever.

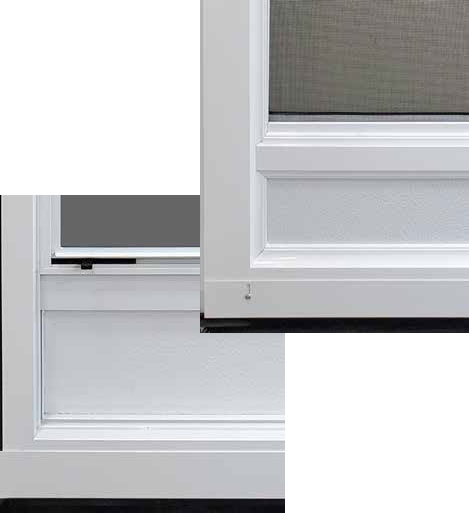

Decorative Stucco Embossed Kick Panels

Available on the SS, DSS, 3LSS, 1L and ¾ SS doors. Both decorative and functional.

ALUMINUM STORM DOORS MODERN

2 1/4” Flat Modern Frame

A bold modern design, built with old fashioned quality to dress up any entry door with style and functionality. The 2 ¼” thick door comes prehung with screw cover set and has a standard DX handle, or upgrade to an Elite Lever. Also available with a retractable screen.

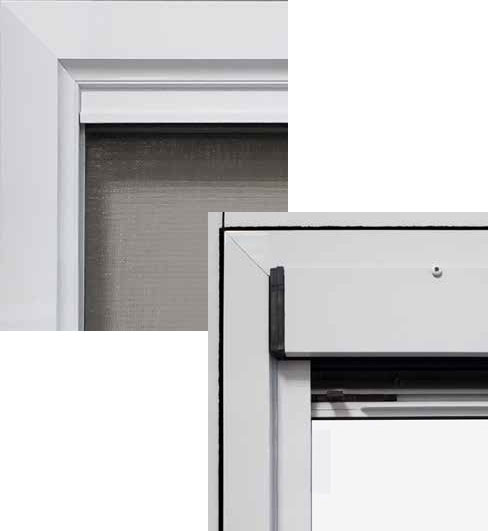

Screw concealment and locking feature

Optional Retractable Screens

Hidden away when you don’t need it and simply roll down from the top when you need some fresh air. Mounted in the frame for a cleaner look. Available only on the 2 ¼” doors SS, DSS, 3LSS, and FL.

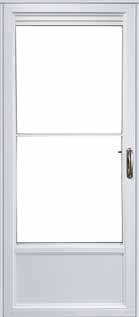

SELF STORING Available in Classic and Modern SS

Standard Widths: 29” - 36”
1/2” increments available
Standard Heights: 68” - 84”
Custom sizes available upon request
Kickplate Height: 20”
On an 80” door
Optional Retractable Screen
Available on Modern door only (shown)

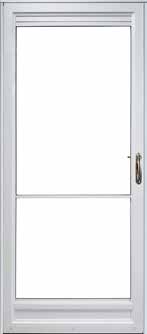

DELUXE SELF STORING Available in Classic and Modern DSS

Standard Widths: 30” - 36”
1/2” increments available
Standard Heights: 7 8 ¾ ” - 84”
Custom sizes available upon request
Kickplate Height: 6½ ”
On an 80” door
Optional Retractable Screen
Available on Modern door only (shown)

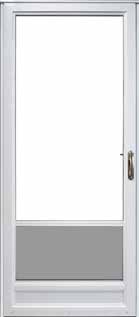

¾ SELF STORING Available in Classic and Modern ¾SS

Standard Widths: 2”, 34”, 36”
Standard Heights: 7 8 ¾ ” - 84”
Custom sizes available upon request
Kickplate Height: 6½ ”
On an 80” door
Comes with Fixed Screen

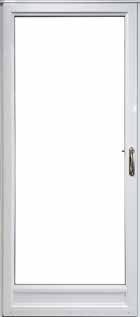

ONE LITE Available in Classic and Modern 1L

Standard Widths: 30” - 36”
1/2” increments available
Standard Heights: 7 8 ½ ” - 84”
Custom sizes available upon request
Kickplate Height: 8”
On an 80” door
Comes with Interchangeable Screen as standard
No Screen is optional (must be specified on order)

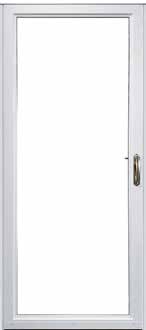

FULL VIEW Available in Classic and Modern FV

Standard Widths: 30” - 36”
1/2” increments available
Standard Heights: 7 8 ½ ” - 84”
Custom sizes available upon request

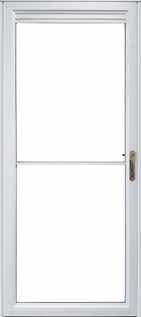

FULL LITE RETRACTABLE Available in Modern only FL

Standard Widths: 30” - 36”
1/2” increments available
Standard Heights: 7 8 ½ ” - 84”
Custom sizes available upon request
Comes with Retractable Screen

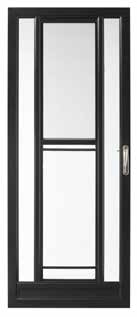

3-LITE SELF STORING Available in Classic and Modern 3LSS

Standard Widths: 30” - 36”
1/2” increments available
Standard Heights: 7 8 ½ ” - 84”
Custom sizes available upon request
Kickplate Height: 8”
On an 80” door
Optional Retractable Screen
Available on Modern door only (shown)

STANDARD COLORS

WHITE

CHOCOLATE BROWN

COMMERCIAL BROWN

MILL UNFINISHED

OPTIONAL COLORS

SANDALWOOD

CLAY

GREY

BLACK

STANDARD HARDWARE

DX WHITE

DX SILVER

DX BLACK

DX BRASS

OPTIONAL HARDWARE

MODERN SILVER

MODERN BLACK

ELITE BRASS
*Transition to MODERN BRASS upon depletion of stock

EXTERIOR DEADBOLTS

INTERIOR DEADBOLTS

BACK-UP ANGLE SET

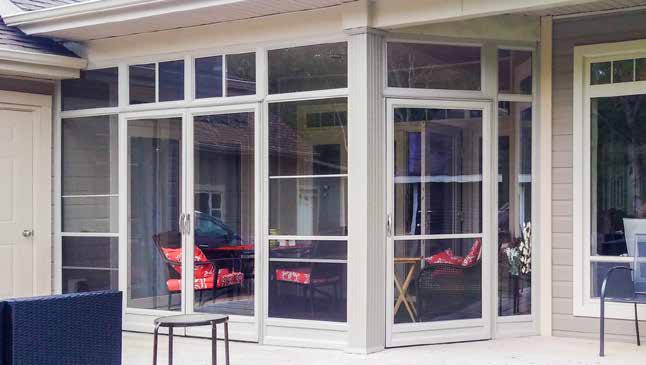

ALUMINUM PORCH ENCLOSURES

Classic Porch Enclosure

  • Classic porch enclosure is constructed with 2” heavy wall extruded aluminum frame.
  • Comes with a Classic style aluminum storm door (refer to aluminum storm door section).
  • All hardware and joining channels (U, L, or H) are provided as required for easy installation.
  • Curved and straight shapes available.
  • Standard and optional colours available (see storm door colour chart).
  • Threshold available in mill finish only.
  • Single hung and single slider vented panels are available with standard screen on the bottom.
  • All panels come with single pane glass.
  • Full glass panels with tempered glass and no kick plate are available (upcharge for tempered).
  • Sandwich panel aluminum roof is available in white only.

NEW Modern Porch Enclosure

  • Modern porch enclosure is constructed with 2 ¼” heavy wall extruded aluminum frame.
  • Comes with a Modern aluminum storm door with optional retractable screen (refer to aluminum storm door section).
  • All hardware and joining channels (U,L or H) provided as required for easy installation
  • Curved and straight shapes available.
  • Standard and optional colours available (see storm door colour chart).
  • Threshold available in mill finish only.
  • Single hung panels are available with optional retractable screen vented panels.
  • All panels come with single pane glass.
  • Full glass panels with tempered glass and no kick plate are available (upcharge for tempered).
  • Sandwich panel aluminum roof is available in white only.

EXAMPLE OF VARIOUS STYLES

SINGLE DOOR WITH TRANSOM

(minimum charge 35 sq.ft.)

SINGLE DOOR WITH TRANSOM AND SIDE PANEL

(minimum charge 45 sq.ft.)

SINGLE DOOR WITH TRANSOM AND TWO SIDE PANELS

(minimum charge 53 sq.ft.)

DOUBLE DOOR WITH TRANSOM

(minimum charge 48 sq.ft.)

GLASS DECORATIVE OPTIONS

PATTERNED V-GROOVE

15 SQUARE V-GROOVE

BORDER V-GROOVE

FLORAL-A SANDBLAST

FLORAL-B SANDBLAST

FLORAL-C SANDBLAST

3LSS ART GLASS SANDBLAST (SIDE PANELS ONLY)

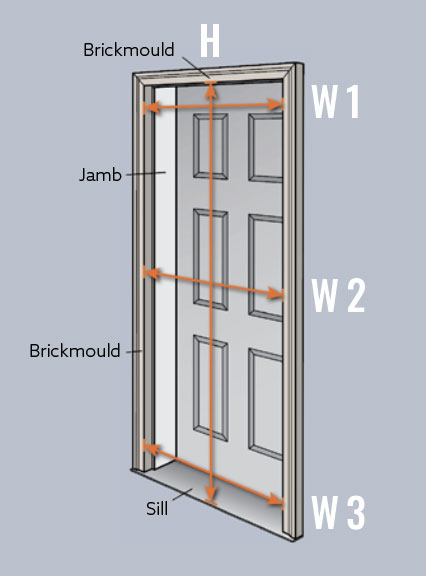

STORM DOOR MEASURE GUIDE

1

Measure the width of the door opening on the inside face of the brickmould on each side: top, center & bottom. Record the shortest measurement.

2

Measure the height from the top of the door sill to the under-side of the brickmould at the top.

3

The box sweep at the bottom of the storm door allows a ½” expansion. The door will be manufactured to allow a ¼” adjustment up or down from the measurement provided.

4

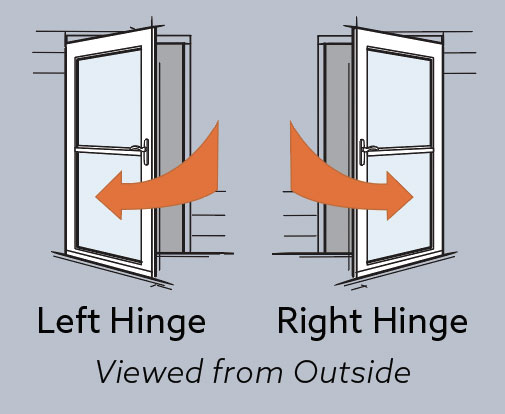

Choose the door handing

Measured Opening Required Size
28 ¾” to 29 ¼”29”
29 ¼” to 29 ¾”29 ½”
29 ¾” to 30 ¼”30”
30 ¼” to 30 ¾”30 ½”
30 ¾” to 31 ¼”31”
31 ¼” to 31 ¾”31 ½”
31 ¾” to 32 ¼”32”
32 ¼” to 32 ¾”32 ½”
32 ¾” to 33 ¼”33”
33 ¼” to 33 ¾”33 ½”
33 ¾” to 34 ¼”34”
34 ¼” to 34 ¾”34 ½”
34 ¾” to 35 ¼”35”
35 ¼” to 35 ¾”35 ½”
35 ¾” to 36 ¼”36”
36 ¼” to 36 ¾”36 ½
